THE TEMPORARY RESIDENCE: ATL/NYC
PROJECTS

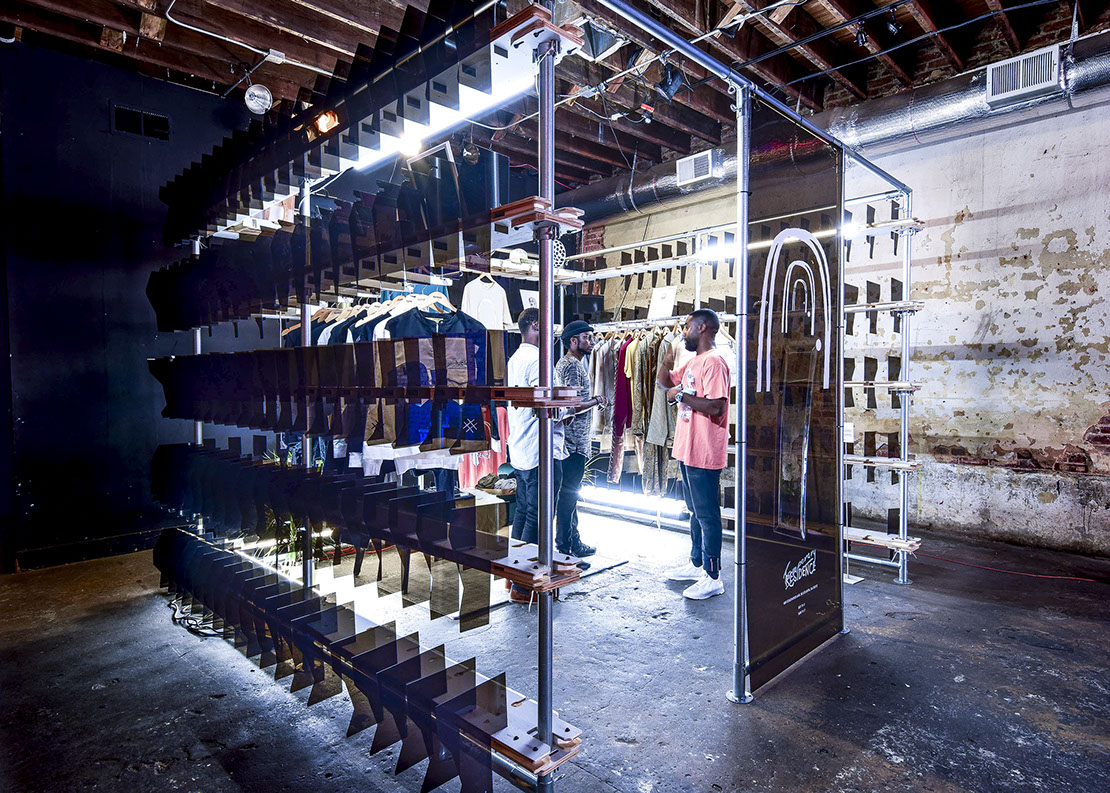

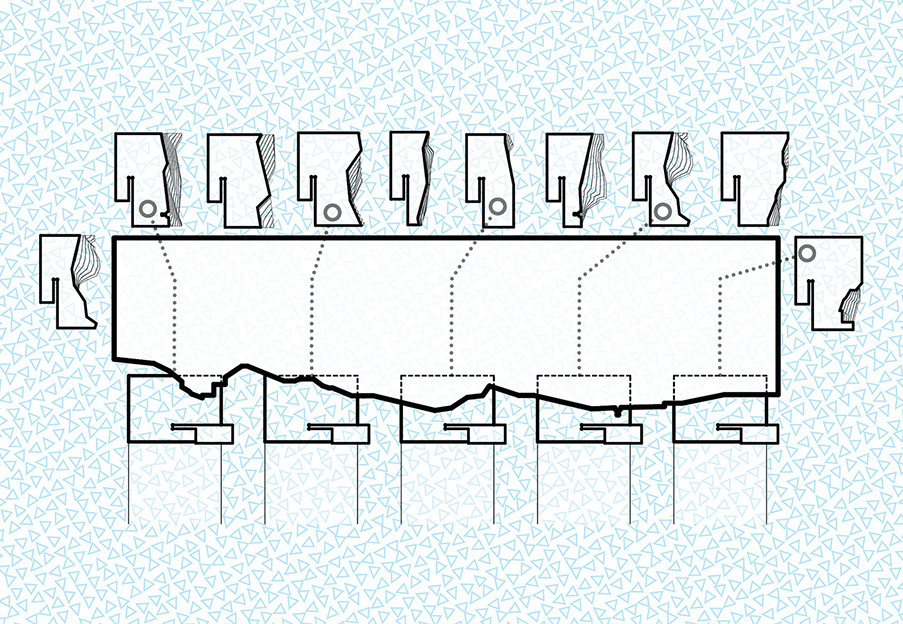

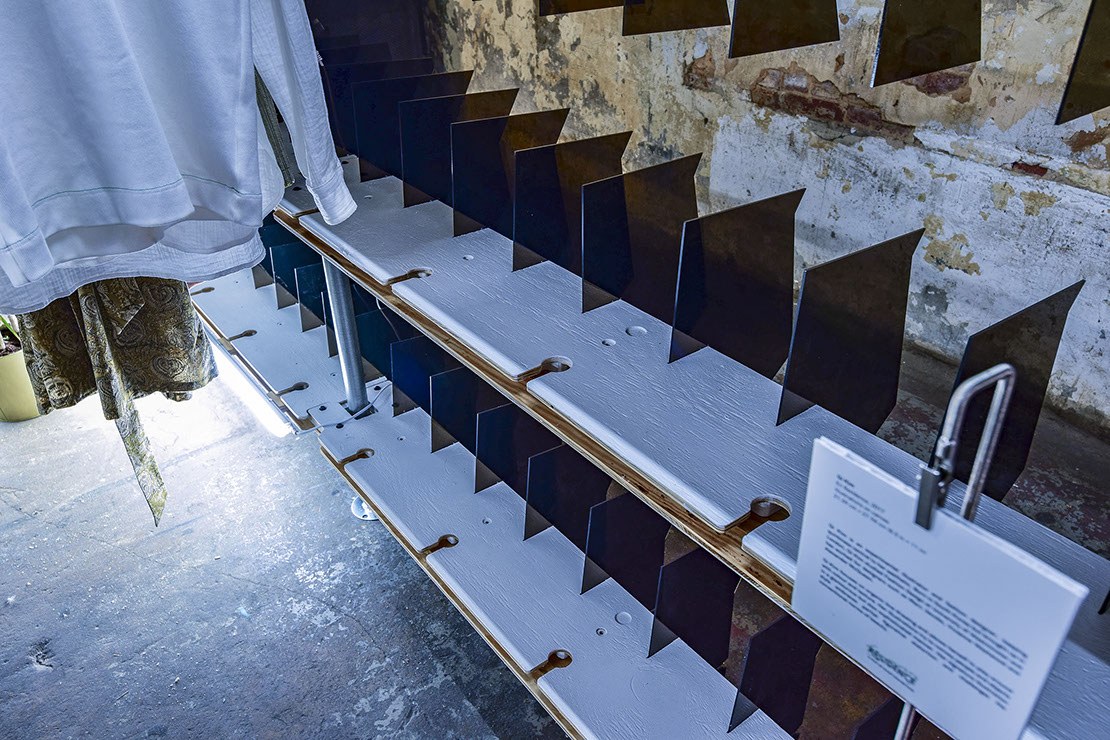

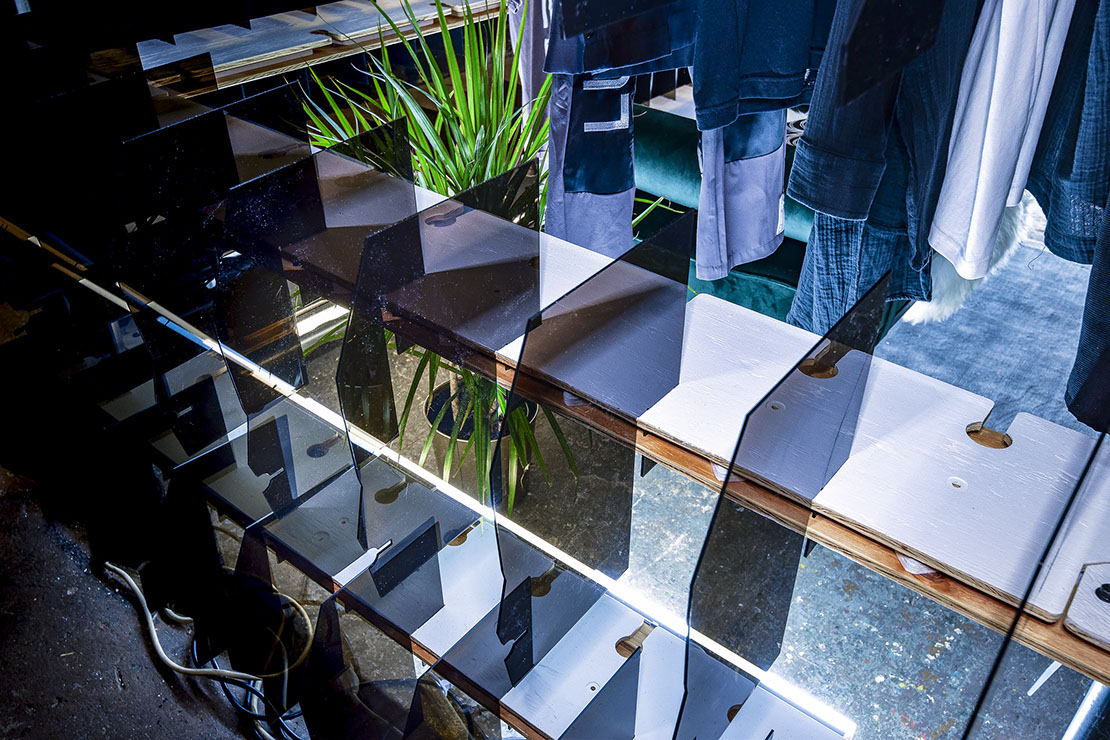

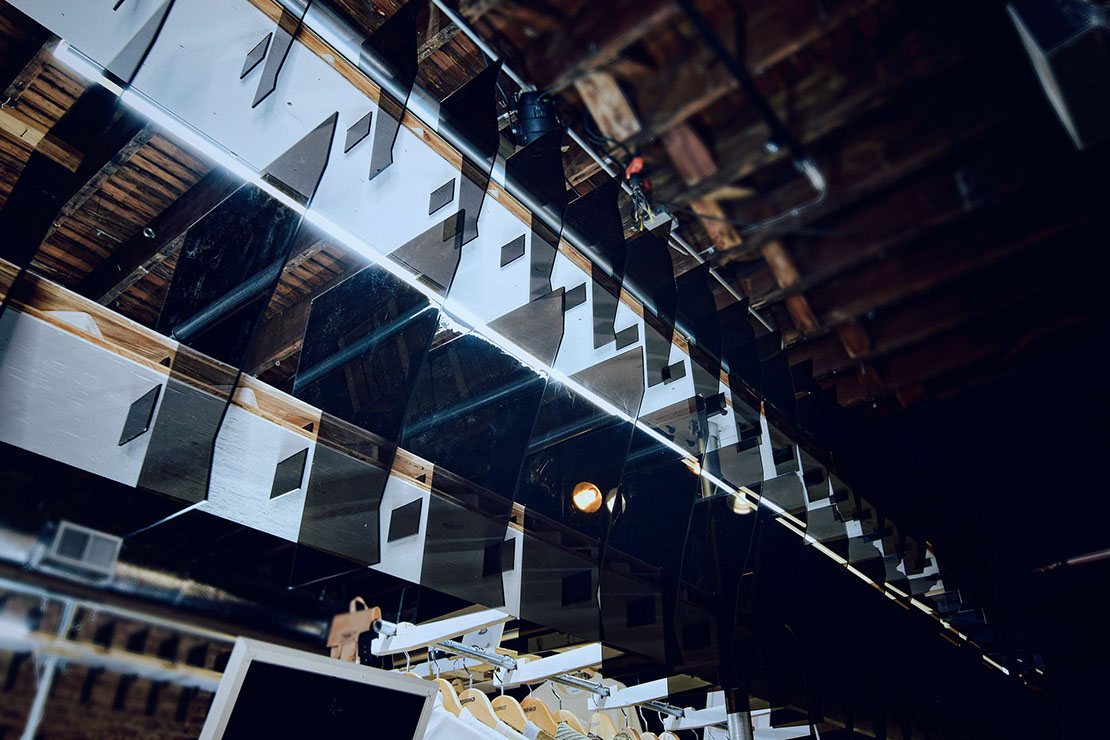

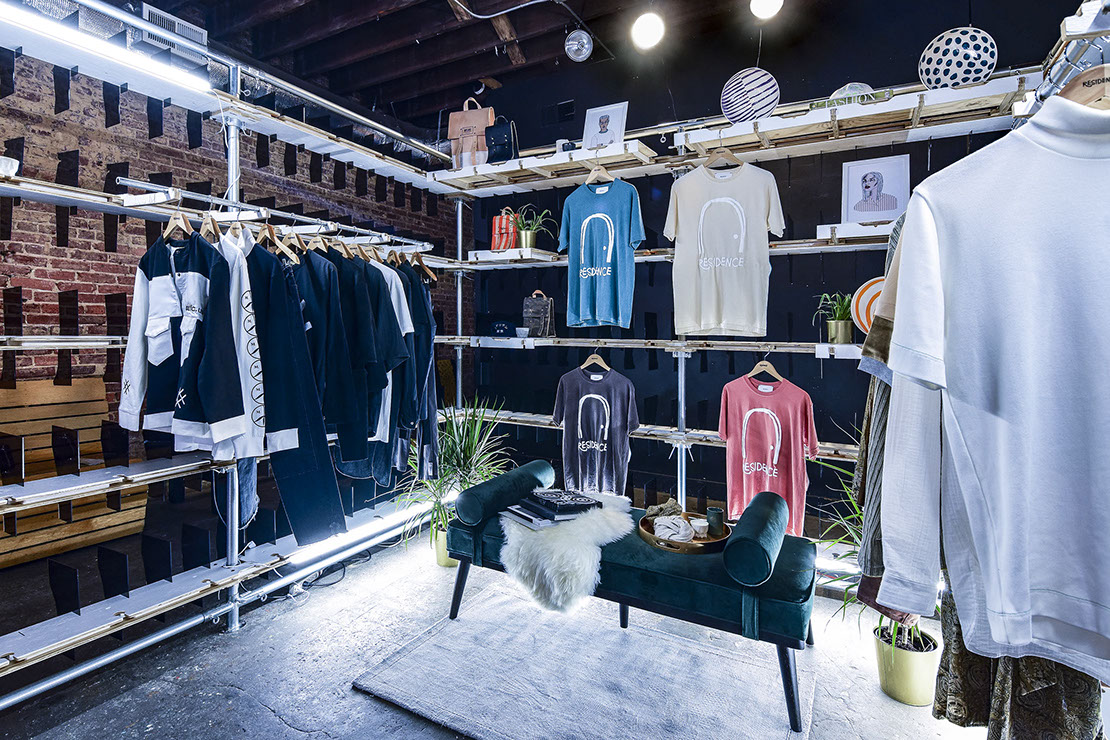

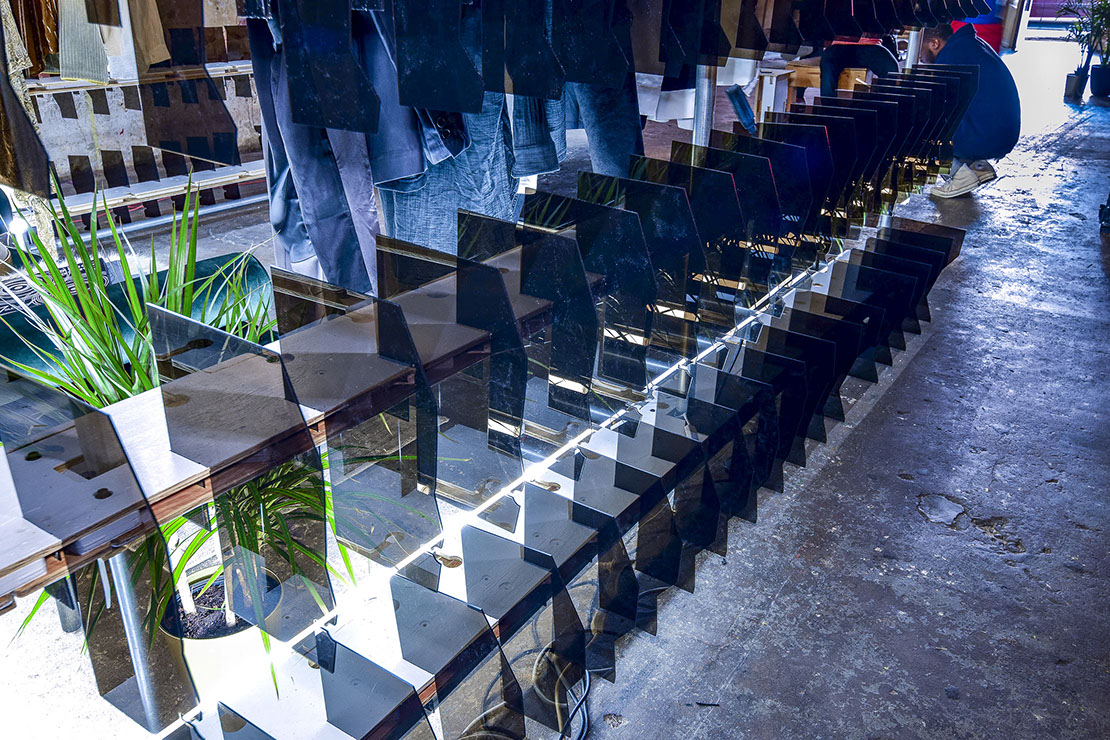

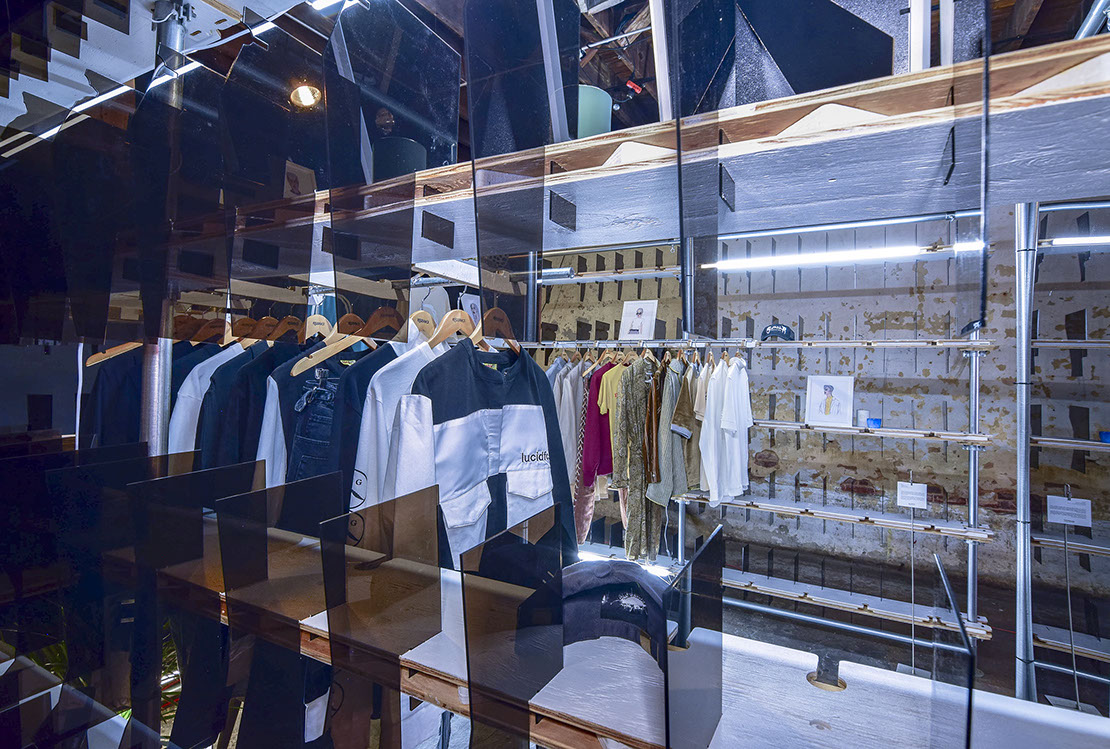

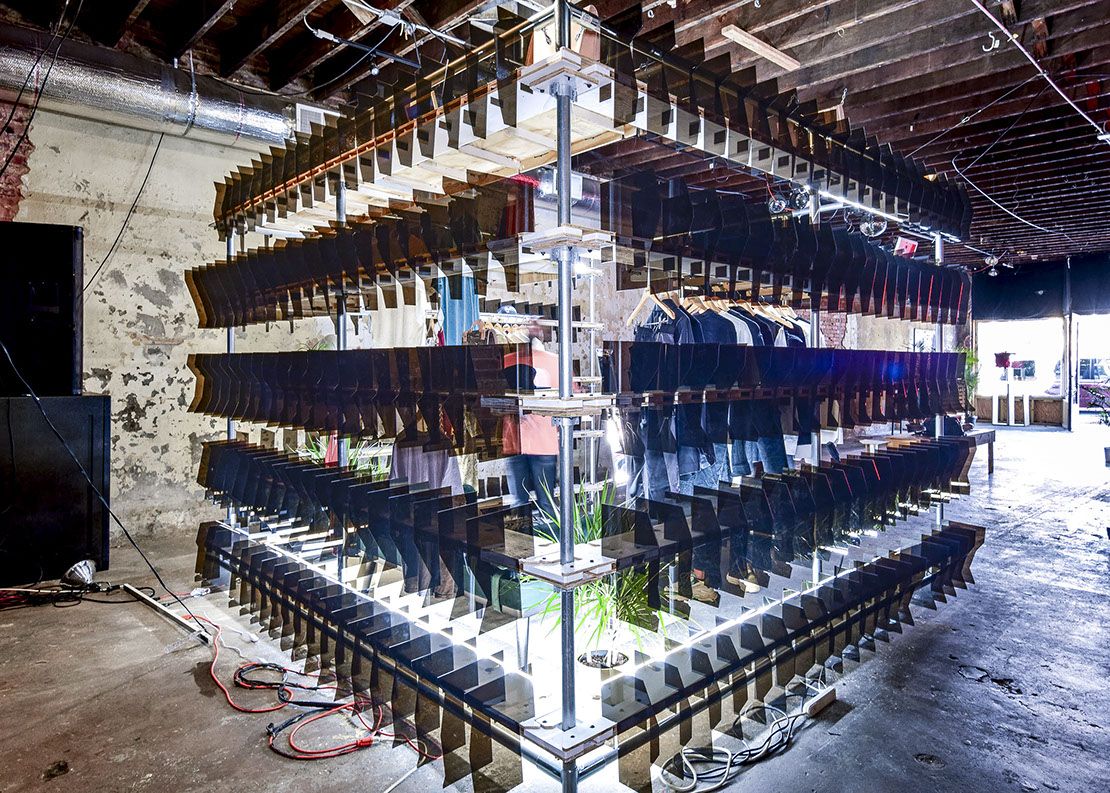

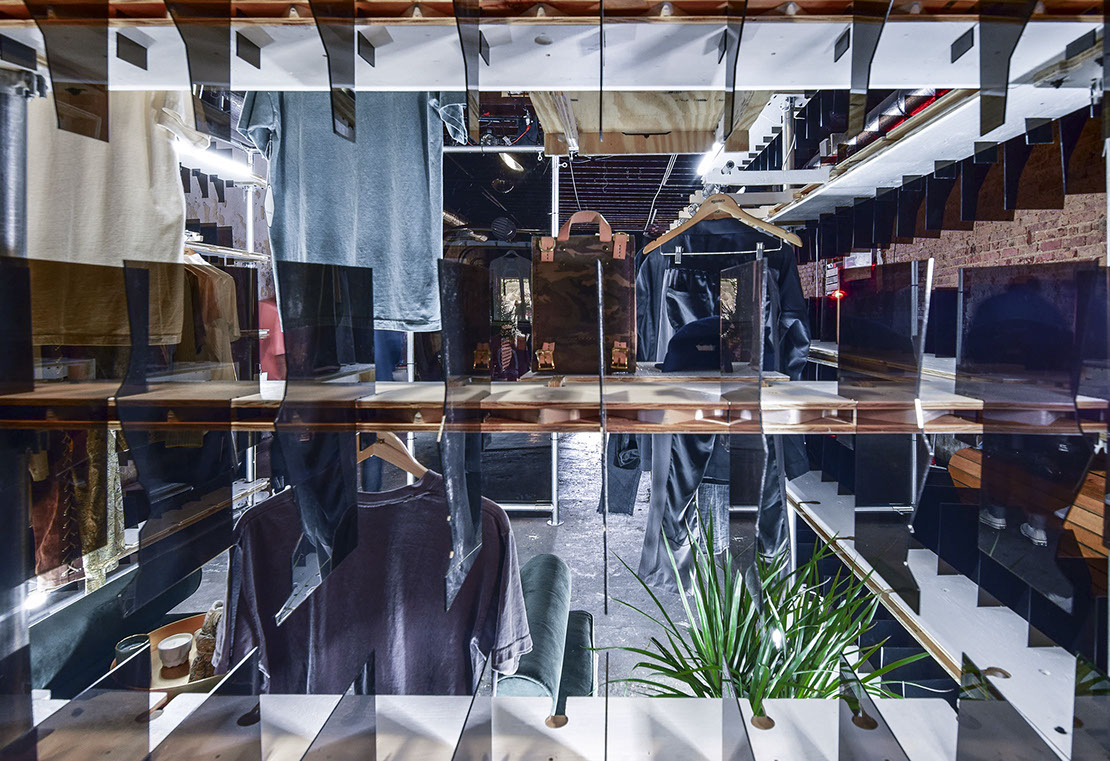

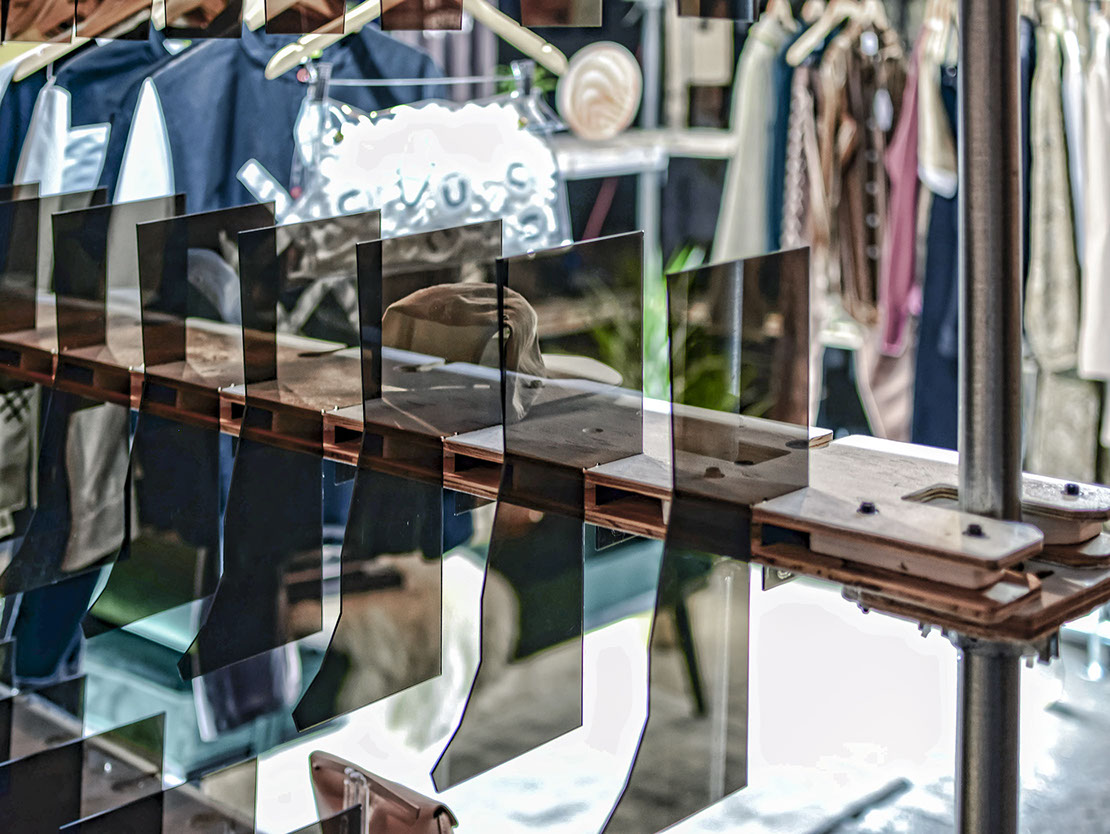

This retail installation acts as a display environment by featuring various types of shelving, stands and hanging elements that utilize a custom, universal connection system of embed slots. This system allows for the placement of the display elements on any of the connection blades at multiple points. Additionally, this installation begins to unfold a design language that serves as the future voice of The Low Life NY and how it will represent itself as a forward thinking, design-oriented company. The space is clad with an acrylic skin, which creates a custom pattern derived from the topographical profile of an international retailer’s six locations. This retailer is one of The Low Life's founders earliest design influences when thinking about how to position his company as a unique brand. The skinned sides have two location section profiles which start on each end. These profiles are created through a procedural modeling technique called a boolean operation and are then merged together near the center through a loft or swept blend. If you look closely at the ends of each side, you will see a half circle with a rectangle extending from the side. This represents the retailer's location along the topographical profile. The locations are as follows from right to left moving around the installation - Milan, Tokyo, Seoul, Shanghai, Beijing and New York.
* Plywood:
3/8" & 3/4" sheathing
* Galvanized steel pipe and connections
* Acrylic sheet
1/8" & 1/4"
* Brass socket cap bolts
* blackened hex cap bolts
* Naval brass solid round stock
* 4ft 6500k linear florescent led lights
Client
Residence-ATL, Atlanta GA & New York NY
Design + Fabrication
OrchestraONE_Studio
Fabrication + Build Team
Chad Perusse
Nathan Baker
James Patrick Meyer
Additional fabrication
Tristan Al-Haddid
Photos by
CaptisLUX
OrchestraONE_Studio
